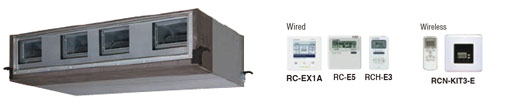

| Model |
FDU224KXZE1 |
FDU280KXZE1 |
| Cooling Capacity |
kW |
22.4 |
28.0 |
| Heating Capacity |
kW |
25.0 |
31.5 |
| Power Source |
|
1 Faz 220V - 240V, 50Hz |
| Power Consumption |
Cooling |
kW |
1.16 - 1.20 |
1.16 - 1.20 |
| Heating |
1.16 - 1.20 |
1.16 - 1.20 |
| Sound Pressure Level |
dB(A)mm |
50 / 47 / 45 |
| Exterior Dimensions HxWxD |
mm |
379x1600x893 |
| Net Weight |
kg |
89 |
| Air Flow* |
(m3) / dak |
Hi:72 / Me:64 / Lo:56 |
| External Static Pressure |
|
200 |
| Air Filter |
|
Procure Locally |
| Outside Air Intake |
Pa |
Possible |
| Remote Control (Ops) |
|
Wired: RC-EX1A, RC-E5, RCH-E3, Wireless: RCN-KIT3-E |
| Installion Data |
mm / in |
Liquid Line ø9.52 (3/8") |
Liquid Line ø9.52 (3/8") |
| Refrigerant Piping Size |
Gas Line ø19.05 (3/4") |
Gas Line ø22.22 (7/8") |
|
