KXZ new design includes greatly simplified wiring requirements utilising a 'polarity-free' two wire control loop connecting the indoor units.

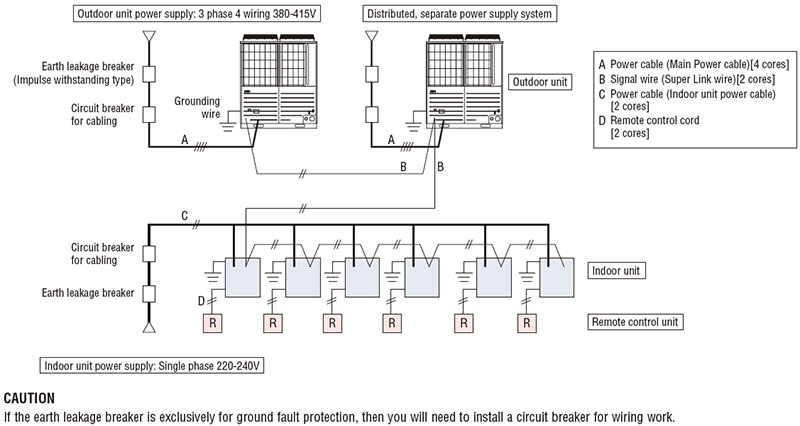

Power Wiring : Cables can be laid through the front, right, left or bottom of the outdoor unit casing. Seperate power supplies should be used for the outdoor unit (3/phase) and the indoor units (1/phase). Only control wiring is connected from outdoor to indoor unit.
|
